IS-060S/080S

Invertechs (Xiamen) Technology Co., Ltd.

Precio:

Desde €0,101 / Wp

Tipo:	Micro-inversores
Gama de Potencia:	0,63~0,84 kW
Región:	China

Contactar con el Fabricante

Nota: Su Consulta se enviará directamente a Invertechs (Xiamen) Technology Co., Ltd..

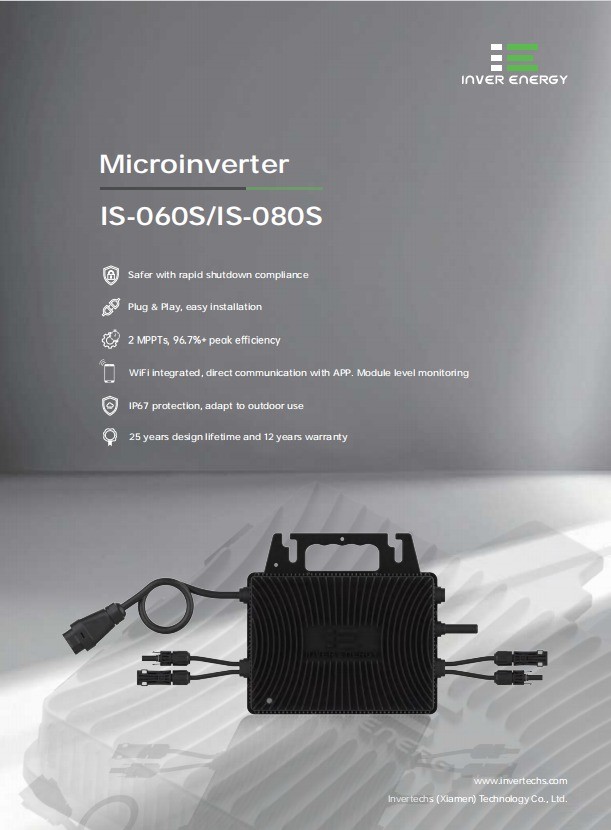

Descripcion:

Safer with rapid shutdown compliance
Plug & Play, easy installation
2 MPPTs, 96.7%+ peak efficiency
WiFi integrated, direct communication with APP. Module level monitoring
IP67 protection, adapt to outdoor use
25 years design lifetime and 12 years warranty

Información del Producto
Perfil de la Empresa

Características del Producto

No. de Modelo

IS-060S

IS-080S

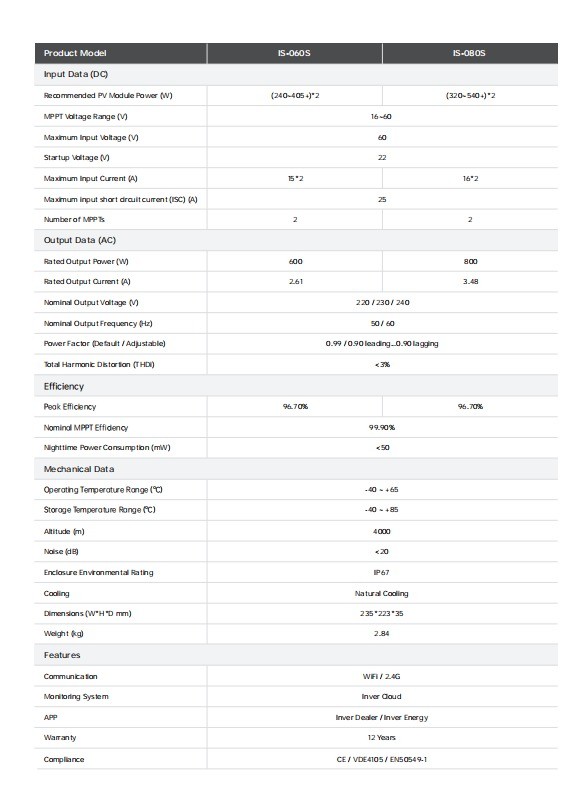

Especificaciones

Potencia

0,63 kW

0,84 kW

Garantía

Garantía de Producto (Min)

12 Años

Datos de entrada DC

Potencia Maxima DC

1 kW

1,3 kW

Tension maxima

60 V

Tension minima para iniciar alimentacion

16 V

Maxima corriente DC

15 A

16 A

Rango de Tension MPP(T)

16~60 V

Tension de MPPT

Entrada DC

Conectores

MC4

Datos de salida AC

Potencia Maxima AC

0,63 kW

0,84 kW

Potencia nominal AC

0,6 kW

0,8 kW

Rango de Tension AC para Salida

220~240 V

Tension nominal de red AC

220, 230, 240 V

Voltaje AC Clasificada

230 V

Maxima corriente AC

2,87 A

3,83 A

Corriente AC Clasificada

2,61 A

3,48 A

Rango de frecuencia

50-60 Hz

Frecuencia

50, 60 Hz

Factor de potencia (cosφ)

0,99

Distorsion (THD)

< 3 %

Numero de fases de inyeccion

Eficiencia maxima

96,7 %

Datos generales

Dimensiones (A/A/F)

223x235x35 mm

Peso

2,84 kg

Nivel de ruido

< 20 dB(A)

Temperatura de Funcionamiento

-40 ~ +65 ℃

Transformador

High Frequency-Transformer

Clase Protectora

IP67

Enfriamiento

Natural

Altitud maxima

4000 m

Interface

Bluetooth, WLAN

Caracteristicas de Proteccion

Proteccion Anti Aislante (ENS), Proteccion Corto-Circuito, Proteccion Contra Sobrecarga, Proteccion contra Sobretensiones, Proteccion contra Sobreintensidades, Proteccion contra Temperatura Excesiva, Dispositivo de Corriente Residual (RCD), Proteccion contra Sobretension y Sobrecarga, Monitorizacion de fallo de Toma de Tierra, Monitorizacion de Aislamiento, Monitorizacion de Red

PDF

Descargar pdf del Fabricante

Maximizing Solar Potential

Inver's latest innovation, the IS-060/080 series dual micro-inverters can enhance energy production and solar panel reliability. Unlike all the other traditional inverter systems, IS-060/080 microinverters monitor each panel individually. Harvesting the maximum amount of energy possible, regardless of shading, soiling, and other factors to provide users with more electricity over the system's lifetime.

IP67 Waterproof Rating Ensures Service Life

Inver microinverter uses an aluminum metal casing with a streamlined appearance design. The body is made of aluminum alloy widely used in aerospace and navigation. It is ultra-thin, lightweight, and saves transportation costs. It is resistant to high temperatures and corrosion and has an IP67 waterproof rating to ensure service life.
