Sun-4/5/6/7/8/10K-G03

Sun-4/5/6/7/8/10K-G03

Ningbo Deye Inverter Technology Co., Ltd.
Tipo: Conectado a la Red
Gama de Potencia: 4,4~11 kW
Región: China China
Nota: Su Consulta se enviará directamente a Ningbo Deye Inverter Technology Co., Ltd..

Descripcion:

The three-phase inverter is specially designed for three-phase PV systems, covering a wide power range of 4kW, 5kW, 6kW, 7kW, 8kW, 10kW. With compactness design, it is easy to install and operate. It supports wide AC output voltage to ensure longer working hour.

Características del Producto

No. de Modelo
SUN-4K-G03 SUN-5K-G03 SUN-6K-G03 SUN-7K-G03 SUN-8K-G03 SUN-10K-G03
Datos de entrada DC
Potencia Maxima DC
5,2 kW 6,5 kW 7,8 kW 9,1 kW 10,4 kW 13 kW
Tension maxima
1000 V 1000 V 1000 V 1000 V 1000 V 1000 V
Tension minima para iniciar alimentacion
140 V 140 V 140 V 140 V 140 V 140 V
Maxima corriente DC
25 A 25 A 25 A 25 A 25 A 25 A
Rango de Tension MPP(T)
120~850 V 120~850 V 120~850 V 120~850 V 120~850 V 120~850 V
Tension de MPPT
2 2 2 2 2 2
Entrada DC
2 2 2 2 2 2
Conectores
MC4 MC4 MC4 MC4 MC4 MC4
Datos de salida AC
Potencia Maxima AC
4,4 kW 5,5 kW 6,6 kW 7,7 kW 8,8 kW 11 kW
Rango de Tension AC para Salida
277~460 V 277~460 V 277~460 V 277~460 V 277~460 V 277~460 V
Tension nominal de red AC
400 V 400 V 400 V 400 V 400 V 400 V
Frecuencia
50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz
Factor de potencia (cosφ)
1 1 1 1 1 1
Distorsion (THD)
< 3 % < 3 % < 3 % < 3 % < 3 % < 3 %
Numero de fases de inyeccion
3 3 3 3 3 3
Eficiencia maxima
98,3 % 98,3 % 98,3 % 98,3 % 98,3 % 98,3 %
Euro-eficiencia
97,5 % 97,5 % 97,5 % 97,5 % 97,5 % 97,5 %
Conexión de Salida AC
Plug Plug Plug Plug Plug Plug
Datos generales
Dimensiones (A/A/F)
430x330x177 mm 430x330x177 mm 430x330x177 mm 430x330x177 mm 430x330x177 mm 430x330x177 mm
Peso
15 kg 15 kg 15 kg 15 kg 15 kg 15 kg
Consumo nocturno
< 1 W < 1 W < 1 W < 1 W < 1 W < 1 W
Nivel de ruido
< 25 dB(A) < 25 dB(A) < 25 dB(A) < 25 dB(A) < 25 dB(A) < 25 dB(A)
Temperatura de Funcionamiento -25 ~ +65 ℃
Transformador Sin Transformador
Clase Protectora IP65
Humedad 0-100 %
Enfriamiento Natural
Altitud maxima 2000 m
Interface RS 232, RS 485, Ethernet
Visualizacion LCD, LED
Caracteristicas de Proteccion
Caracteristicas de Proteccion Proteccion Anti Aislante (ENS), Proteccion Corto-Circuito, Proteccion Contra Sobrecarga, Proteccion contra Sobretensiones, Proteccion contra Sobreintensidades, Proteccion contra Temperatura Excesiva, Proteccion contra Inversiones de la Polaridad, Proteccion contra Sobretension y Sobrecarga, Monitorizacion de fallo de Toma de Tierra, Monitorizacion de Aislamiento, Monitorizacion de Red



Sun-4/5/6/7/8/10K-G03







▍Production & Quality Control



▍Cooperation Partner


Deye chooses world-class suppliers to ensure the high quality products




▍Products




▍Projects





Ningbo Deye Inverter Technology Co., Ltd.

Click to show company phone
www.deyeinverter.com
China
No. 26-30 Southern Yongjiang Road, Daqi, Beilun District, Ningbo, Zhejiang
No. Empleados: 500
Empresa Madre: Ningbo Deye Technology Group
Nota: Su Consulta se enviará directamente a Ningbo Deye Inverter Technology Co., Ltd..

Contactos Útiles

Contact Face
Kyle Zhang
Contact Face
Blake
Contact Face
Wang
Contact Face
Amy
Contact Face
Andrew Chen
Contact Face
Leslie Chen
Contact Face
Ian
Contact Face
Betsy Chen
Descripción de la Empresa
Ningbo Deye Inverter Technology Co., Ltd, founded in 2007 with registered capital 30 million USD, is one of the China’s high-tech enterprises and a subsidiary of Deye Group. With a plant area over 15,000m² and complete production and testing equipment, Deye has become a major player in the global solar inverter market.

Ningbo Deye Inverter Technology Co., Ltd is dedicated to providing complete photovoltaic power system solutions, including residential and commercial power plants solutions. Also, Deye offers solar energy storage system solutions. Among them, PV grid-connected inverter power range from 1.5-110kW, Hybrid inverter 3kW-12kW, and microinverter 300W-2000W.

As a technology-oriented company, Deye has always been committing to research and develop new cutting-edge technologies to provide efficient and reliable products. For example, Deye adopts T-type three-level topology and enhanced SVPWM algorithm to further improve the conversion efficiency by 0.7% compared with common SPWM.
Detalles de la Actividad de la Empresa
Tipos de Componente
Inversor, Controladores de Carga, Sistema de Almacenamiento, Solución PID
Controladores de Carga
Tipo de Tecnología: MPPT
Inversor
Tipo: Conectado a la Red, Hibrida, Micro-inversores
Power Range (kW): 0,3-110
Empresa Madre
Ningbo Deye Technology Group
Fabricación
OEM
Num. de Vendedores Conocidos
Inversor 13 Vendedor, Sistema de Almacenamiento 1 Vendedor
Producto



▍Ningbo Deye Inverter Technology

Ningbo Deye Inverter Technology Co., Ltd, founded in 2007 with registered capital 205 million RMB(Over 30 million USD), is one of the China’s high-tech enterprises and a subsidiary of Deye Group. With a plant area over 15,000m² and complete production and testing equipment, Deye has become a major player in the global solar inverter market.
Ningbo Deye Inverter Technology Co., Ltd is dedicated to providing complete photovoltaic power system solutions, including residential and commercial power plants solutions. Also, Deye offers solar energy storage system solutions. Among them, PV grid-connected inverter power range from 1.5-110kW, Hybrid inverter 3kW-12kW, and microinverter 300W-2000W.
As a technology-oriented company, Deye has always been committing to research and develop new cutting-edge technologies to provide efficient and reliable products. For example, Deye adopts T-type three-level topology and enhanced SVPWM algorithm to further improve the conversion efficiency by 0.7% compared with common SPWM.



▍Production & Quality Control



▍Cooperation Partner


Deye chooses world-class suppliers to ensure the high-quality products

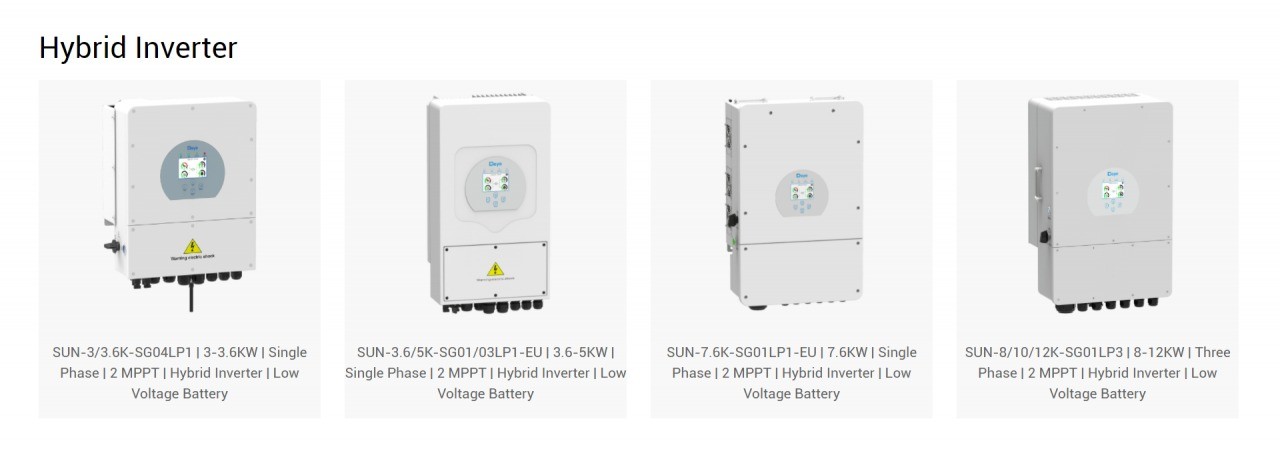

▍Products
