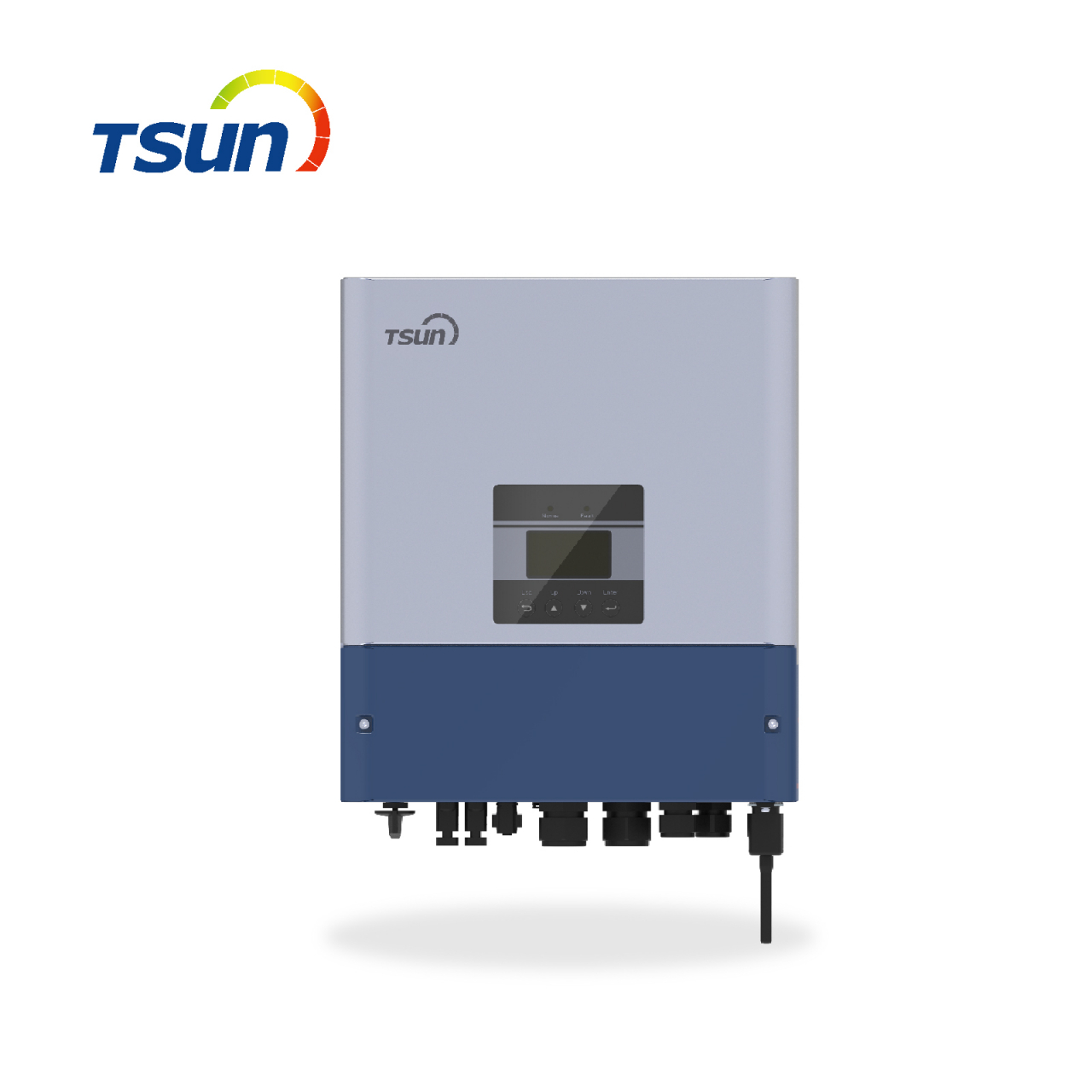

AC Coupled Inverter (High Efficiency)

AC Coupled Inverter (High Efficiency)

TSUNESS Co., Ltd
Precio:
Desde €0,153 / Wp
Desde €721 / Unidad
Tipo: Hibrida
Gama de Potencia: 3~6 kW
Región: China China
Nota: Su Consulta se enviará directamente a TSUNESS Co., Ltd.

Producto Alternativo

Suresine

Morningstar
MSRP desde €0,755 / Wp
  • Tipo: Aislado
  • Garantía de Producto: 2 Años
  • Clase Protectora: IP20
  • Dimensiones: 213x152x105 mm
  • Peso: 4,5 kg
  • Potencia Maxima DC: --
  • Tension maxima: 15,5 V
  • Maxima corriente DC: --
  • Rango de Tension MPP(T): --
  • Tension de MPPT: --
  • Potencia Maxima AC: 0,3 kW
  • Frecuencia: 50,60 Hz
  • Eficiencia maxima: 92 %
  • Euro-eficiencia: --
  • Fases de Alimentacion: --

Características del Producto

No. de Modelo
TSOL-A3,0K-H TSOL-A3,6K-H TSOL-A4,0K-H TSOL-A4,6K-H TSOL-A5,0K-H TSOL-A6,0K-H
Especificaciones
Potencia
3 KW 3,68 KW 4 KW 4,6 KW 5 KW 6 KW
Precio
€721 / Unidad €753 / Unidad €788 / Unidad €827 / Unidad €870 / Unidad €917 / Unidad
Garantía
Garantía de Producto
5 Años 5 Años 5 Años 5 Años 5 Años 5 Años
Datos de salida AC
Potencia Maxima AC
3 kW 3,68 kW 4 kW 4,6 kW 5 kW 6 kW
Rango de Tension AC para Salida
180~270 V 180~270 V 180~270 V 180~270 V 180~270 V 180~270 V
Tension nominal de red AC
220, 230, 240 V 220, 230, 240 V 220, 230, 240 V 220, 230, 240 V 220, 230, 240 V 220, 230, 240 V
Voltaje AC Clasificada
230 V 230 V 230 V 230 V 230 V 230 V
Maxima corriente AC
14 A 16 A 18,6 A 21,4 A 23,2 A 27,9 A
Rango de frecuencia
45-65 Hz 45-65 Hz 45-65 Hz 45-65 Hz 45-65 Hz 45-65 Hz
Frecuencia
50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz
Factor de potencia (cosφ)
0,8 0,8 0,8 0,8 0,8 0,8
Distorsion (THD)
< 3 % < 3 % < 3 % < 3 % < 3 % < 3 %
Numero de fases de inyeccion
1 1 1 1 1 1
Conexión de Salida AC
Screw Screw Screw Screw Screw Screw
Datos generales
Dimensiones (A/A/F)
460x400x170 mm 460x400x170 mm 460x400x170 mm 460x400x170 mm 460x400x170 mm 460x400x170 mm
Peso
17 kg 17 kg 17 kg 17 kg 17 kg 17 kg
Consumo nocturno
< 3 W < 3 W < 3 W < 3 W < 3 W < 3 W
Nivel de ruido
< 30 dB(A) < 30 dB(A) < 30 dB(A) < 30 dB(A) < 30 dB(A) < 30 dB(A)
Temperatura de Funcionamiento -20 ~ +60 ℃
Transformador Sin Transformador
Clase Protectora IP65
Humedad 0-95 %
Enfriamiento Natural
Altitud maxima 2000 m
Interface RS 485, WLAN
Visualizacion LCD
Caracteristicas de Proteccion
Caracteristicas de Proteccion Proteccion Anti Aislante (ENS), Proteccion Corto-Circuito, Proteccion Contra Sobrecarga, Proteccion contra Sobretensiones, Proteccion contra Sobreintensidades, Proteccion contra Temperatura Excesiva, Dispositivo de Corriente Residual (RCD), Proteccion contra Inversiones de la Polaridad, Proteccion contra Sobretension y Sobrecarga, Seccionador de Carga, Monitorizacion de fallo de Toma de Tierra, Monitorizacion de Aislamiento, Monitorizacion de Red
PDF
Descargar pdf del Fabricante

About us

Tsun, with its German background of production and quality assurance management system, is an innovative high-tech company focused on the development and sales of energy storage products and energy storage solutions. It commits to build a global top energy storage brand covering both residential and commercial solutions. Tsun has a mature and capable R&D, sales and management team who has more than 10 years’ experience in the global PV industry. The team has good knowledge of the global market, with elite R&D team composed with masters and doctors from electrical tech development, storage tech development and new energy project development field, Tsun is more than confident to provide global customers with most user-friendly and cost-effective solutions.
With the technological creativity and professional management system from Germany, taking advantage of the foundation of China's new energy battery industry and the advantages of R&D, manufacturing and industrial chain in the field of energy storage in China, combined with the advantages in global sales channels, Tsun will keen in the development, production, sales and service of residential and commercial energy storage solutions.

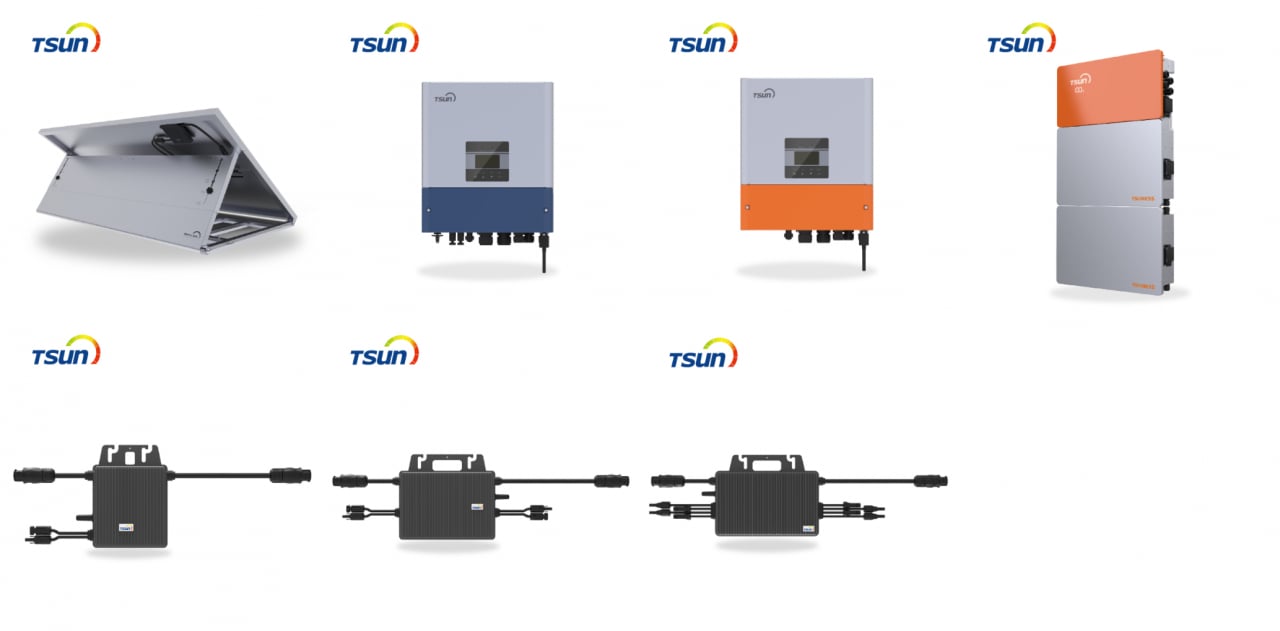

Our products




Products features

◎ TSOL-ESK-E


TSUN Easy Solar Kit, an integration of solar panel, micro inverter and angle-adjustable bracket, breaks the pattern of traditional solar panel installation, enabling more energy generation, easier installation, lower cost and more safety. The system is portable and foldable and can be used in a variety of scenarios, such as flat roofs, gardens and even terraces.


◎ TSOL-H-H / TSOL-H-S

For new PV systems, hybrid storage solution is a wise choice to improve energy storage and utilization. Tsun provides comprehensive hybrid storage solutions, including PV modules, energy storage systems, batteries, etc., combining power generation and energy storage to achieve higher spontaneous utilization.


◎ TSOL-A-H / TSOL-A-S
Tsun AC coupled storage solution is one of the most cost-effective solar and battery storage solutions in the market. By adding the AC coupled storage solution from Tsun into your existing on grid system, you can store extra solar power from your home solar system into batteries during the day - and use it later when necessary. The system enables energy-efficient retrofits of existing PV systems, thereby providing the lowest lifetime energy costs for refurbished customers.


◎ TSOL-ACU
TSUN offers an all-in-one AC coupled system, which simplifies the whole energy storage system's installation process.AC coupled inverter, battery and BMS system integrated with sophisticated designed layout, easy installation with existing PV system, user friendly, and possible to expand battery capacity when the home consumption rises.

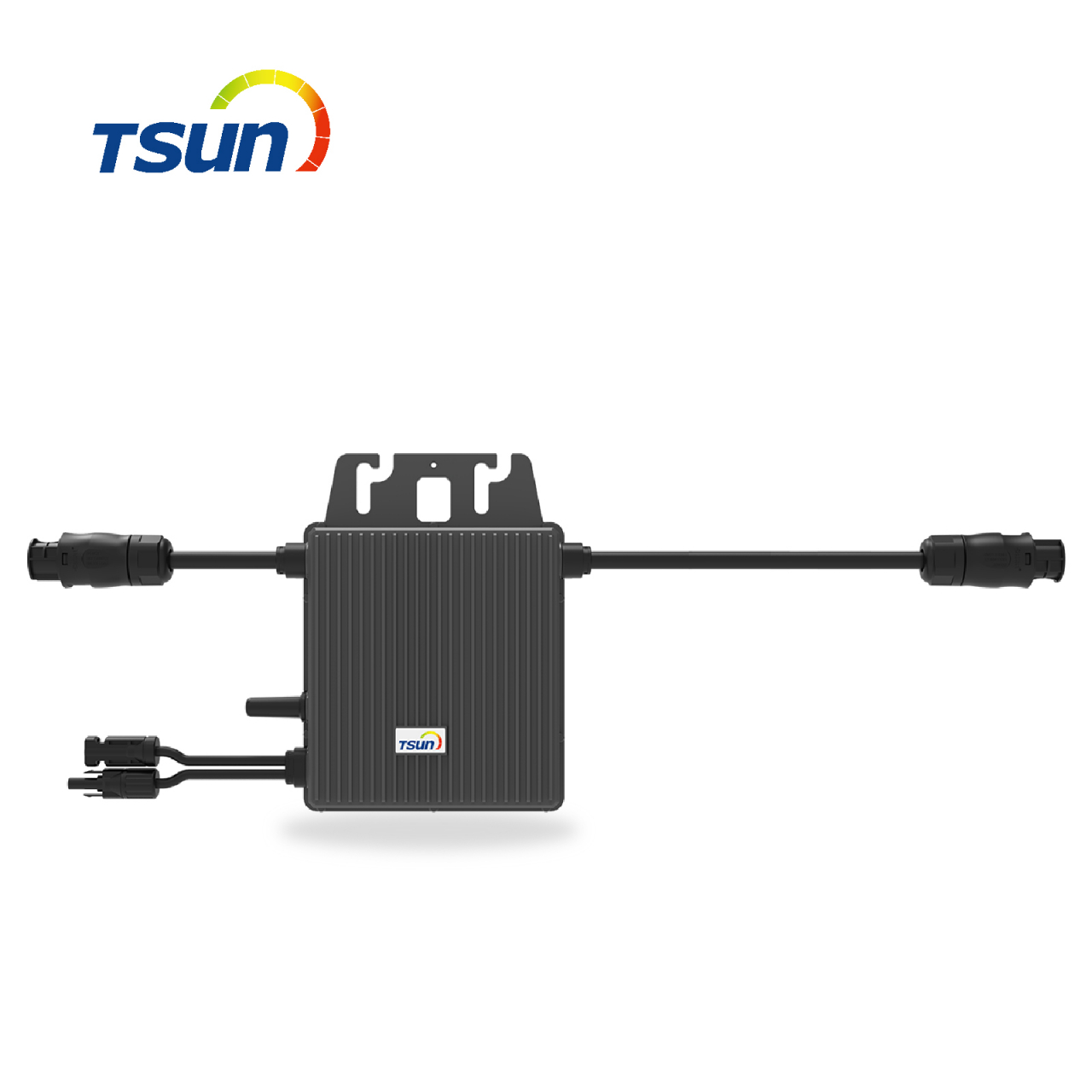

◎ TSOL-M350/M400

Works with one panel solution, plug-and-play, makes the system design most flexible. Single panel MPPT tracking avoids shading effects, make sure the system generates more energy possible.

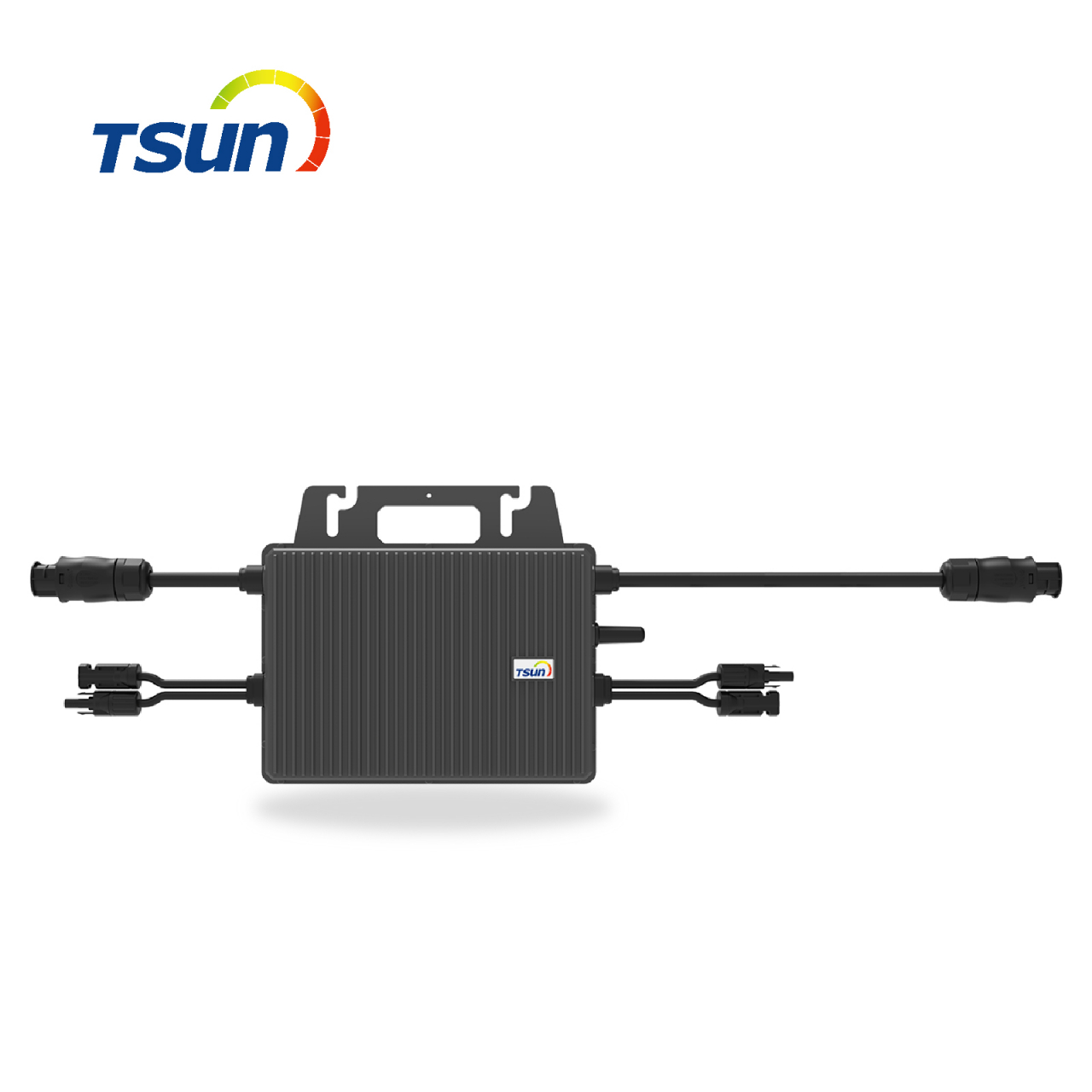

◎ TSOL-M800


Works with two panel solution, plug-and-play, makes the system design most flexible. Single panel MPPT tracking avoids shading effects, make sure the system generates more energy possible.

◎ TSOL-M1600

Works with four panel solution, plug-and-play, makes the system design most flexible. Single panel MPPT tracking avoids shading effects, make sure the system generates more energy possible.


Project case

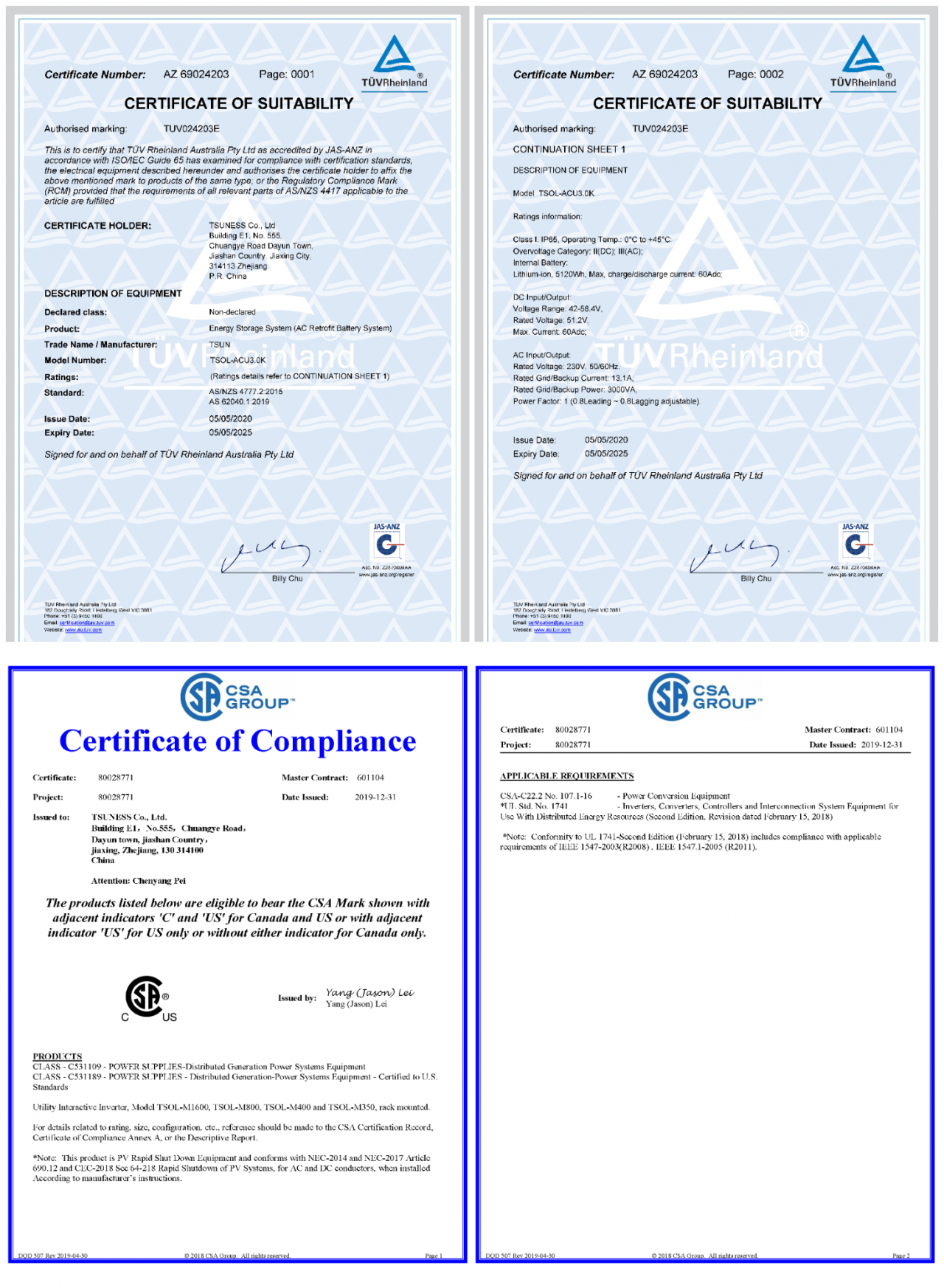

Certification
