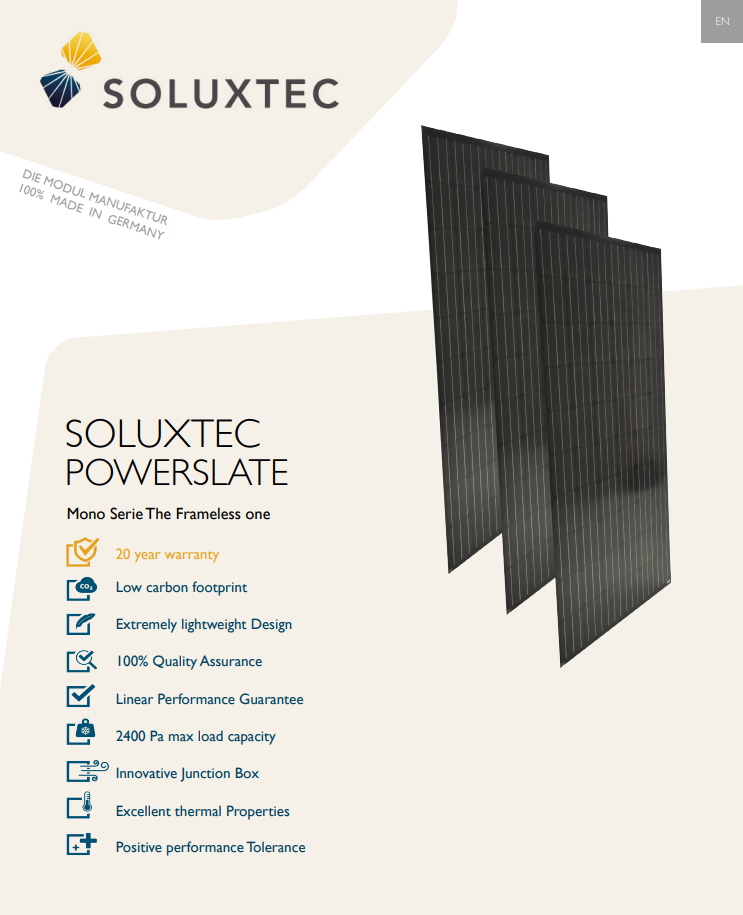

PowerSlate Mono 225-230W

Soluxtec GmbH
Tipo: Monocristalino
Gama de Potencia: Wp
Región: Alemania Alemania
El producto ya no se fabrica.

Descripcion:

● 20 años de garantía, 25 años de garantía de rendimiento lineal.
● 100% de Control de calidad por Electroluminiscencia
● Marco auto-apilable y drenaje de agua.
● Excelentes propiedades térmicas
● Carga de prueba máxima de 8100pa
● Fácil de manejar

Características del Producto

No. de Modelo
PowerSlate Mono 225 PowerSlate Mono 230
Características Eléctricas en STC
Potencia Máxima (Pmax)
225 Wp 230 Wp
Tensión en el Punto de Máxima Potencia (Vmax)
27,3 V 27,65 V
Corriente en el punto de máxima potencia (Imax)
8,25 A 8,32 A
Tensión en Circuito Abierto (Voc)
33,8 V 33,37 V
Corriente de cortocircuito (Isc)
8,8 A 8,85 A
Eficiencia
15,5 % 15,85 %
  Condiciones de prueba estándar (STC): Masa de aire AM 1,5, radiación 1000W/m2, temperatura de célula 25°C,
Características Mecánicas
Dimensiones (A/A/F) 1482x980x5,5 mm
Tipo de Células Monocristalino
Numero de Células 54
Tipo de Trama Sin borde

Product Features



About Soluxtec

Soluxtec is an innovative producer of photovoltaic modules who relies on high quality, high efficiency and aesthetics.

The main office of SOLUXTEC is located in Wasserbillig, Luxembourg.

The engineering, the accounting, as well as the research and development take place in Luxembourg.


The captive production site SOLUXTEC GmbH is located in Bitburg, Germany and offers due to its location at the boarder triangle of Germany, Belgium and Luxembourg and its proximity to France a unique advantage of site and facilitates transnational business relationships, as well as short delivery times and individual system engineering.

Many years of experience within the photovoltaic industry and a high skilled crew as well as newest machines provide the basis for the production in Germany as a location for business – "Made in Germany".

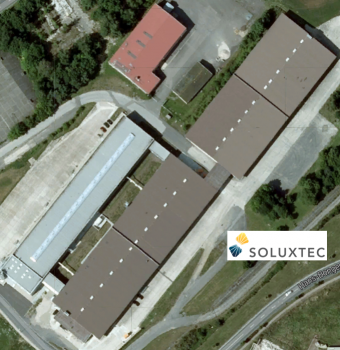

Production

At the production site in Bitburg an experienced team guarantees a consistent and premium quality of all products.






Soluxtec GmbH

Werner von Siemens Str. 25, 54634 Bitburg
No. Empleados: 75
El producto ya no se fabrica.
Soluxtec is an innovative producer of photovoltaic modules who relies on high quality, high efficiency and aesthetics. The main office of SOLUXTEC is located in Wasserbillig, Luxembourg. The engineering, the accounting, as well as the research and development take place in Luxembourg.

Latest Module News - innovation:

1. We do have a water drainage system - means through the corner, the water will leave the Module better and almost complete - means cleaner Modules

2. The Modules are stackable on each height without any corner inlets anymore ( such as carton or plastic over the corners )

3. We do not need any more additional packing materials - means it creates less waste and safe the environment

Cristalino

Producción (MW)/2015: MWp
Monocristalino, Policristalino
Gama de Potencia(Wp): 40-300

1 mas series de Soluxtec GmbH

  • Das Modul Mon...
    315~330 Wp PERC
