SP30HA/SP30HB Battery Inverter

Sino Soar Hybrid (Beijing) Technology Co., Ltd.

Tipo:	Conectado a la Red, Aislado, Hibrida
Gama de Potencia:	33 kW
Región:	China

Nota: Su Consulta se enviará directamente a Sino Soar Hybrid (Beijing) Technology Co., Ltd..

Descripcion:

Higher Yield Generation, Max. Efficiency up to 97.5%
Three-level Topology
1.2 Overload Capacity, No Degrading up to 50℃
Wide DC Input Voltage Range
On/Off-grid Mode, Synchronize with Diesel-Generators
Safe and Reliable
Plug-and-Play Design

Información del Producto
Perfil de la Empresa

Características del Producto

No. de Modelo

SP30HA

SP30HB

Garantía

Garantía de Producto

5 Años

Datos de entrada DC

Potencia Maxima DC

33 kW

Tension maxima

850 V

Tension Nominal de red DC

600 V

Voltaje DC Clasificada

600 V

Tension minima para iniciar alimentacion

400 V

Maxima corriente DC

62 A

Corriente DC Clasificada

55 A

Entrada DC

Datos de salida AC

Potencia Maxima AC

33 kW

Potencia nominal AC

30 kW

Rango de Tension AC para Salida

184~265 V

320~460 V

Tension nominal de red AC

230, 400 V

Voltaje AC Clasificada

230 V

400 V

Maxima corriente AC

50 A

Corriente AC Clasificada

50 A

Rango de frecuencia

47-52 Hz

57-62 Hz

Frecuencia

50, 60 Hz

Factor de potencia (cosφ)

Distorsion (THD)

< 1 %

Numero de fases de inyeccion

Eficiencia maxima

98 %

Datos generales

Dimensiones (A/A/F)

768x550x230 mm

580x520x220 mm

Peso

37 kg

35 kg

Consumo nocturno

< 10 W

Nivel de ruido

< 33 dB(A)

Temperatura de Funcionamiento

-30 ~ +60 ℃

Transformador

Sin Transformador

Clase Protectora

IP65

Humedad

0-100 %

Enfriamiento

Ventilador

Altitud maxima

4000 m

Interface

RS 485, Ethernet, WLAN

Visualizacion

LED

Caracteristicas de Proteccion

Proteccion Anti Aislante (ENS), Proteccion Corto-Circuito, Proteccion Contra Sobrecarga, Proteccion contra Sobretensiones, Proteccion contra Sobreintensidades, Proteccion contra Temperatura Excesiva, Dispositivo de Corriente Residual (RCD), Proteccion contra Inversiones de la Polaridad, Proteccion contra Sobretension y Sobrecarga, Seccionador de Carga, Monitorizacion de fallo de Toma de Tierra, Monitorizacion de Aislamiento, Monitorizacion de Red

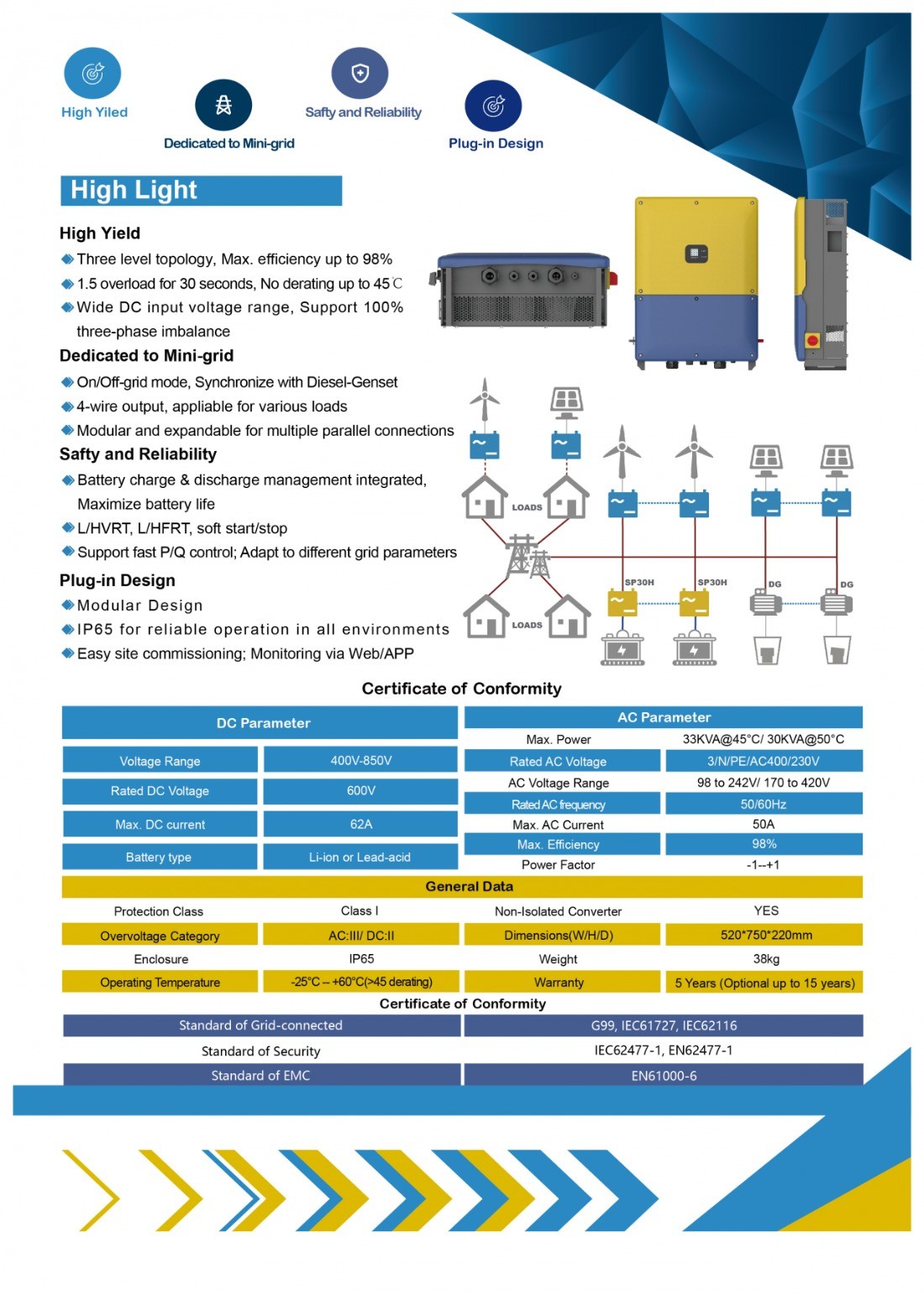

Sinosoar SP30H

SINOSOAR SP30H Power Conversion System is an on/off-grid bidirectional converter that is specially designed for Mini-grid Systems. It is used to connect the battery and AC power grid and carry out the bidirectional transformation of power according to the scheduling of the energy management system or configured parameters.

The AC side of the SP30H Power Conversion System/Hybrid Inverter can be connected to the grid and work independently off the grid. The specially designed strategy makes it easy to work in parallel with the Diesel generators.

Compact design for easy installation; well-designed 30kW model is applicable to various system capacities up to 300kWp.

Business Model

1. Energy Management System (EMS)

SINOSOAR Hybrid EMS Main Controller communicates via So-Controller, Be-Controller, Ge-Controller, and Wi-Controller to connect with distributed sources, to achieve the control of the hybrid plant, provide grid-friendly power injection, as well as stable, safe, and reliable power.

2. SP30H Battery Inverter

SINOSOAR SP30H is a multifunctional bi-direction inverter that is specially designed for solar hybrid systems. The inverter connects the battery system and utility grid and bi-directionally converts power according to the scheduling of the energy management system or configured parameters.

3. GDP (IoT-Based SCADA)

GDP (IoT Based SCADA) is a micro-grid information management platform independently developed by SINOSOAR, supported by cloud computing, IoT, and other technologies. Moreover, it integrates The Vending Management System of SINOSOAR, aiming to provide intelligent monitoring, operation, and maintenance services for business owners and third-party operation and maintenance companies, as well as the full life cycle Management of global micro-grid power stations.

Certifications

Projects

2018 Mongolia 80kWp

2017 Myanmar 583.2kWp

2019 Uganda 518.4kW

2017 Maldives 2.86MWp

2020 Mashall 4MWp
