LW-M6-4BB-PERC

Lightway Technology Development Limited
Precio:
Desde €0.131 / Wp
Tipo de Células: Monocristalino
Gama de Potencia: 5.131~5.372 Wp
Región : China China
Nota: Su Consulta se enviará directamente a Lightway Technology Development Limited.

Descripcion:

1. PID Libre
2. Técnica PERC
3. La alta eficacia de la conversión, eficacia media de la célula es 21.0%, la eficacia más alta es el 22.1%
4. Estabilidad de la eficiencia a largo plazo y excelente fiabilidad
5. Bajo índice de rotura y baja tasa de LID
6. Buena uniformidad del color

Características del Producto

No. de Modelo
LW-M6-4BB-PERC-5.131W LW-M6-4BB-PERC-5.180W LW-M6-4BB-PERC-5.228W LW-M6-4BB-PERC-5.276W LW-M6-4BB-PERC-5.324W LW-M6-4BB-PERC-5.372W
Características del Producto
Tecnología células Monocristalino
Dimensiones 156.75×156.75 mm
Diagonal 210±0.5 mm
Espesor de Celda 220 ± 20 µm
Superficie Frontal (-)
Núm. de Barras Colectoras 4
Ancho de la Barra Colectora 1±0.1 mm
Material de la Barra Colectora Plata
Capa Anti Reflectante Nitruro de Silicio
Superficie Posterior (+)
Núm. De Puntos de Soldadura 4
Ancho del Punto de Soldadura 2.1±0.1 mm
Material del Punto de Soldadura Plata
Superficie de la Cara Posterior (BSF) Aluminio
Características Eléctricas en STC
Potencia Máxima (Pmax)
5.131 W 5.18 W 5.228 W 5.276 W 5.324 W 5.372 W
Tensión en el Punto de Máxima Potencia (Vmpp)
0.553 V 0.555 V 0.557 V 0.559 V 0.561 V 0.563 V
Corriente en el punto de máxima potenci (Impp)
9.272 A 9.326 A 9.381 A 9.435 A 9.489 A 9.543 A
Tensión en Circuito Abierto (Voc)
0.666 V 0.667 V 0.668 V 0.669 V 0.67 V 0.671 V
Corriente de cortocircuito (Isc)
9.748 A 9.798 A 9.849 A 9.899 A 9.948 A 9.998 A
Eficiencia de la Célula
21.0-21.1 % 21.2-21.3 % 21.4-21.5 % 21.6-21.7 % 21.8-21.9 % 22.0-22.1 %
Factor de Llenado (FF)
78.98 % 79.2 % 79.42 % 79.64 % 79.87 % 80.09 %
Características Térmicas
Coeficiente de Temperatura de Pmax -0.4 %/˚C
Coeficiente de Temperatura de Voc -2 %/˚C
Coeficiente de Temperatura de Isc 3.7 %/˚C

------------------------------------------------------<<Product Description>>-----------------------------------------------------------

-------------------------------------------------------<<About Lightway>>------------------------------------------------------------

Lightway was established in 2006,set up four companies in China mainland and owns two operating/sales companies in HongKong,with manufacturing factilities in Jiangsu/Jiangxi/Guangdong for solar cells,solar modules and solar applications etc and global marketing/sales company in Shenzhen,our current annual production capacity is 280MW for solar cells and 360MW for solar modules etc manufactured in CE/ISO/IEC/TUV/UL etc certificates.Lightway devoted to offering clients a one-stop shop for high quality products and already recognized by many of our clients from all over the world up to 80 countries,our annual sales volume is up to USD 30 millions.

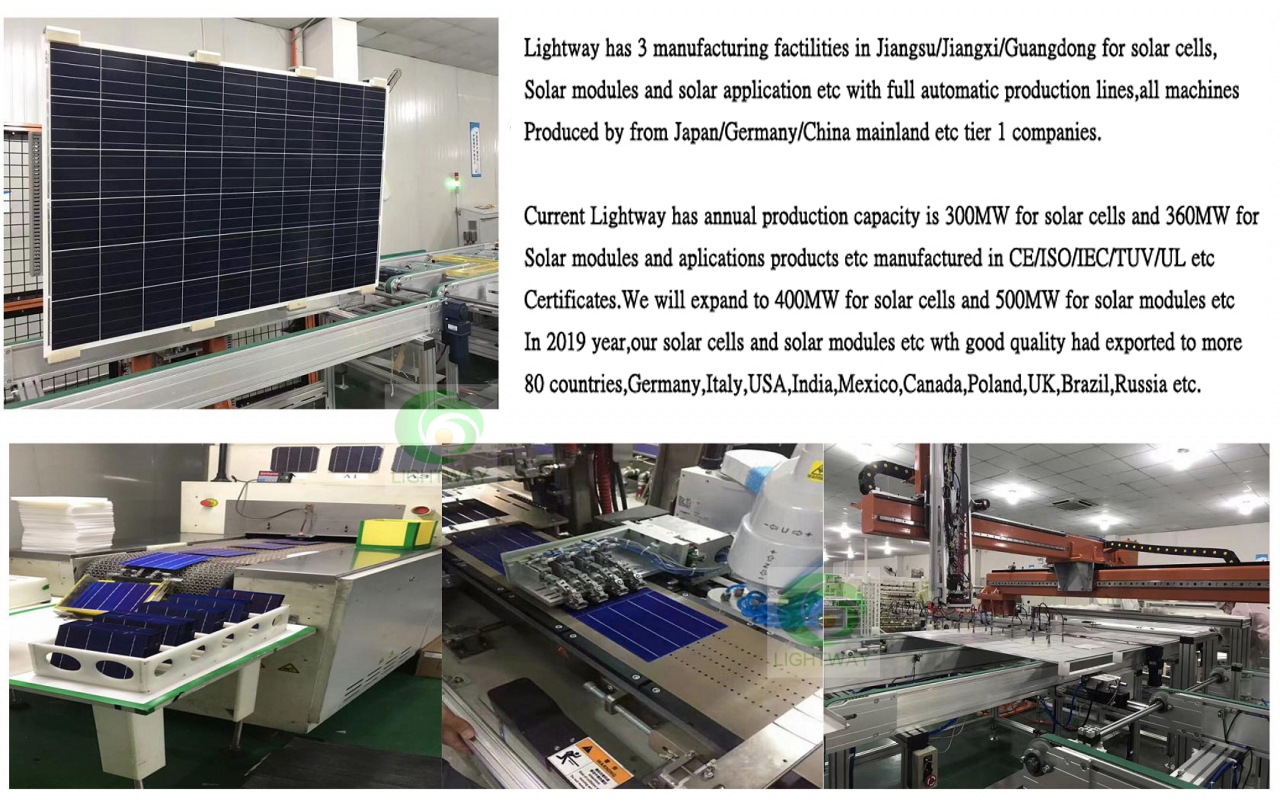

-----------------------------------------------------------<<Our Factory>>---------------------------------------------------------------


-----------------------------------------------------------<<Packaging>>----------------------------------------------------------------


---------------------------------------------------<<Applications & Projects>>-------------------------------------------------------

---------------------------------------------------------<<Full Certificates>>------------------------------------------------------------

--------------------------------------<<Our Flexible and Various Payment Term>>-------------------------------------------


---------------------------------<<Our Shipping is Fast Delivery and Safy & Accurate>>------------------------------------

-------------------------------------------------------------<<RFQ>>--------------------------------------------------------------------

A.How can I place the order?



Firstly,you send the order details/quantity to us.Secondly,we quote reasonable offer and make an agreement.

Thirdly,once we receive your payment or payment document,solar cells will be shipped to you within 1-2 working days if has stock.



B.What's the MOQ of Your Solar cell?



The MOQ is 100pcs,as the standard package is 100pcs per box,1200 & 1400pcs per carton,28,800 & 33,600pcs per pallet.



C.What's the quality of your Solar Cell?



Lightway's Solar Cells are manufactured in TUV/UL/ISO/CE/CQC etc Certificates and using TQC & SPC Quality control systems,

We just dispatch A Grade solar cells with Ultra/Super Premium Performance and high quality to our all customers.



D.Could you introduce your company quickly?



Lightway was established in 2006,our current annual production capacity is 280MW for solar cells and 360MW for solar modules etc manufactured in CE/ISO/IEC/TUV/UL etc certificates,we expand to the capacity of 400MW for solar cells and 450MW for solar panels

In coming years.
